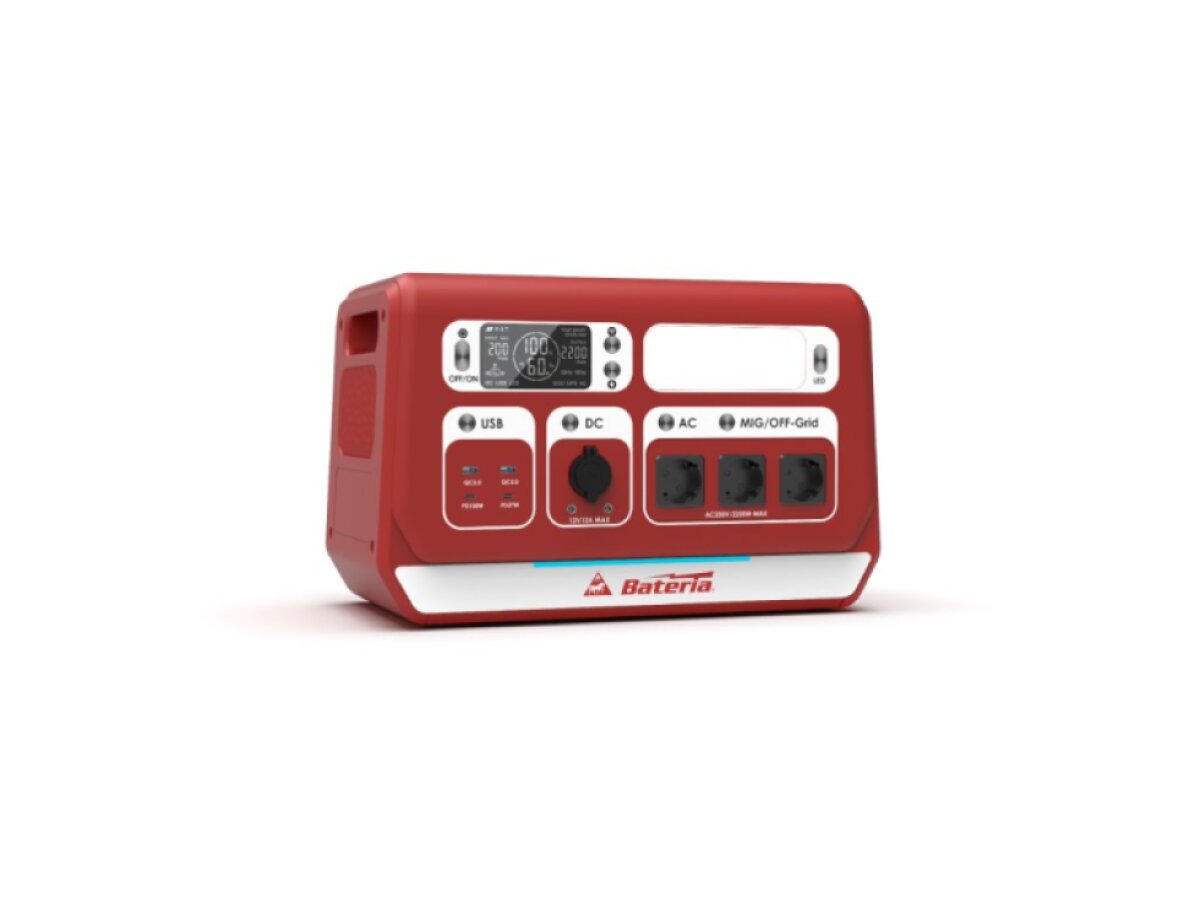

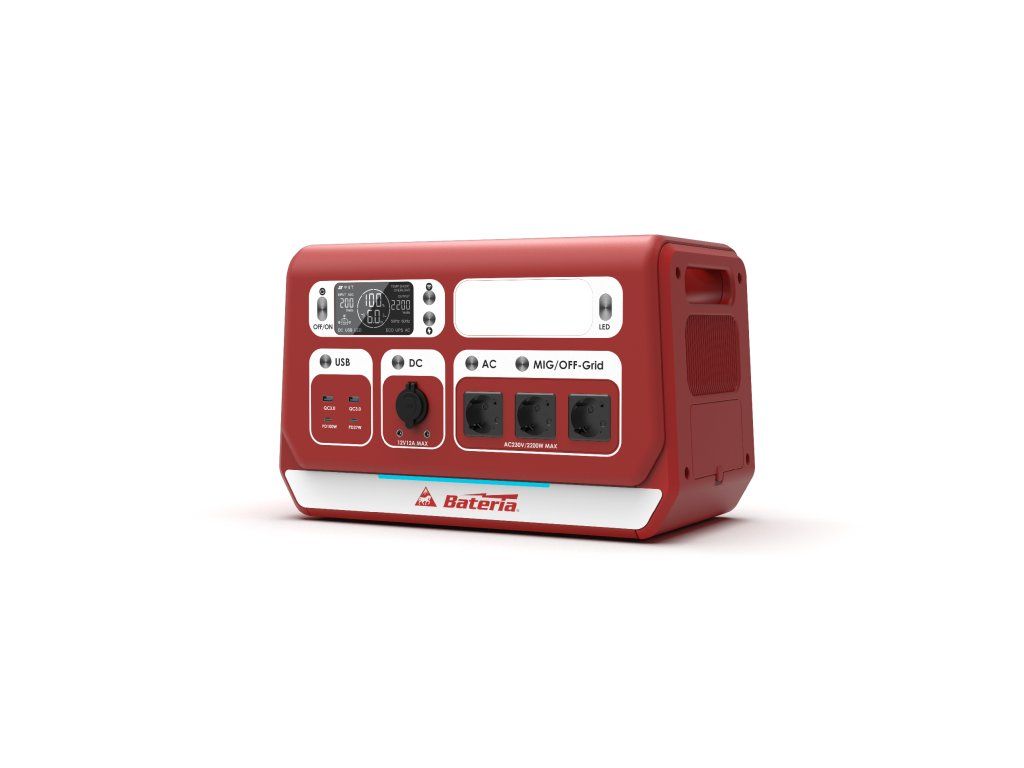

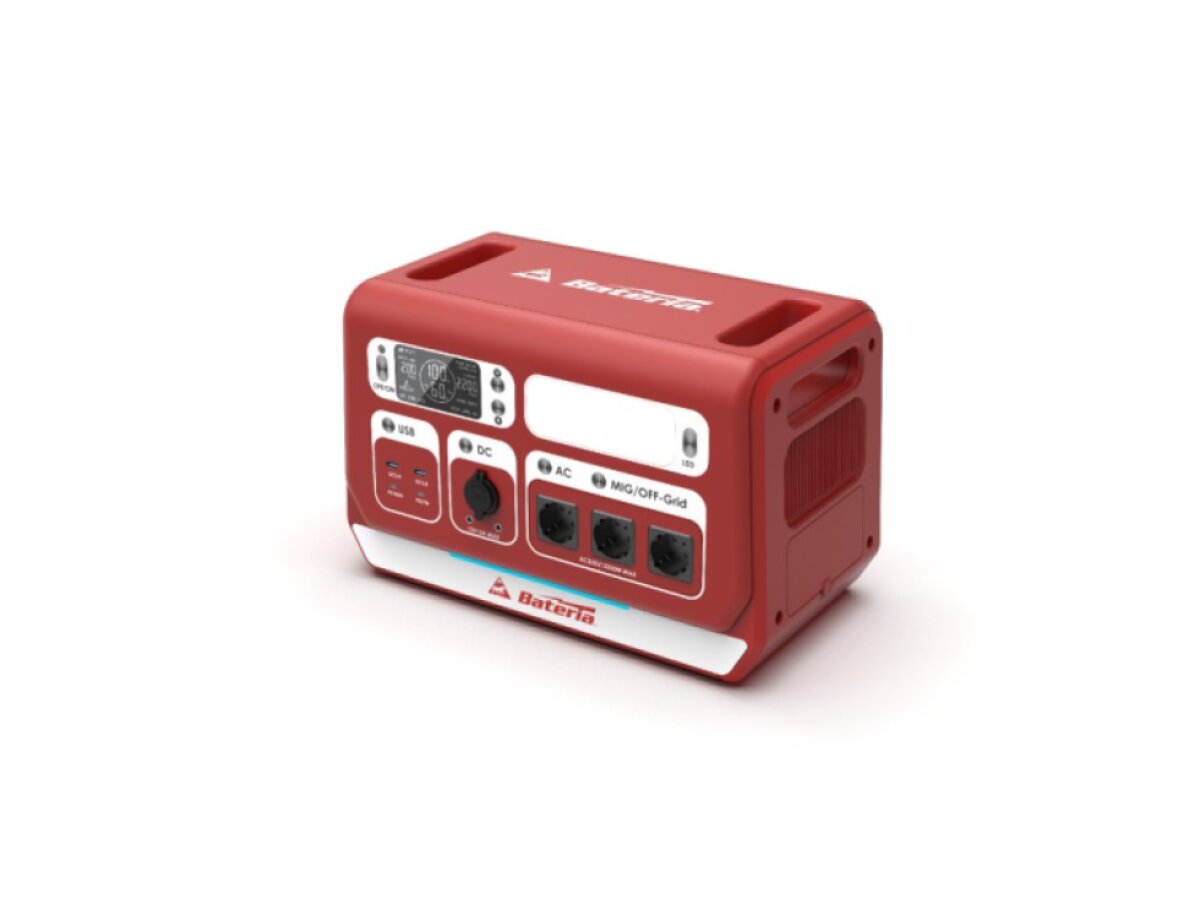

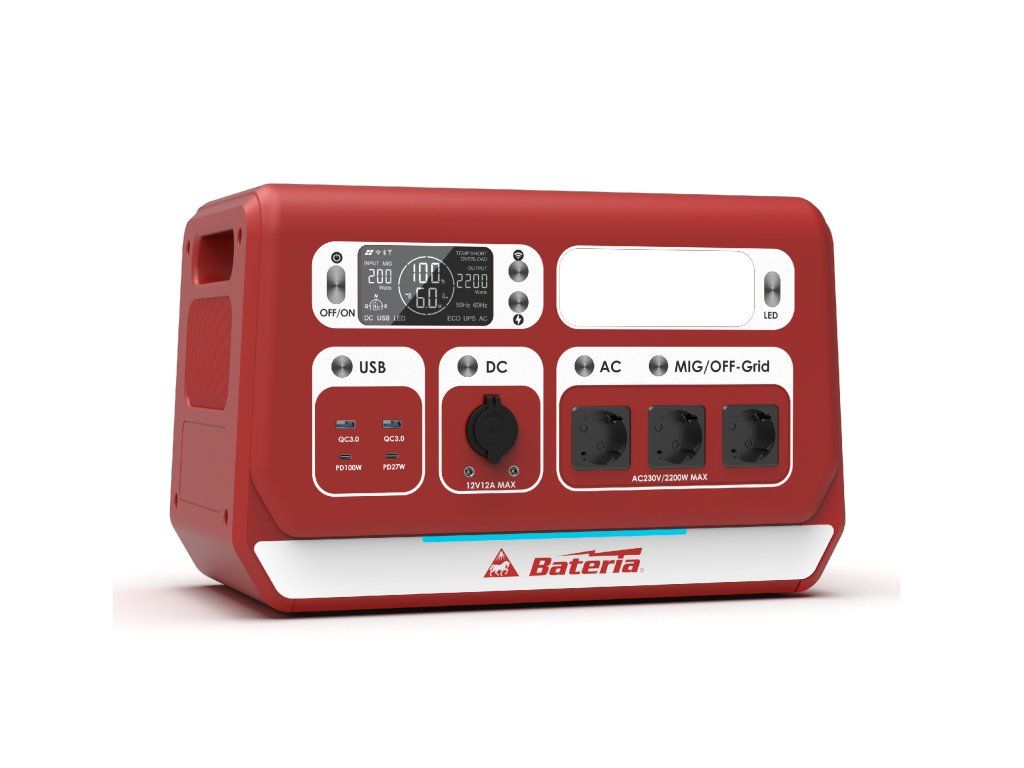

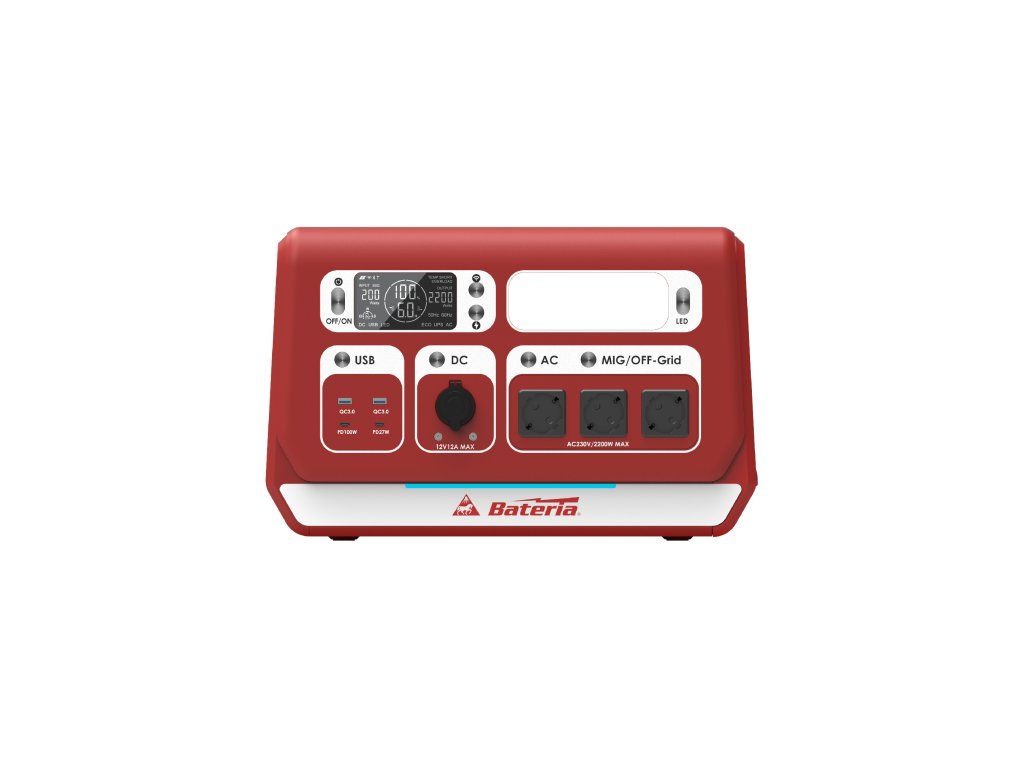

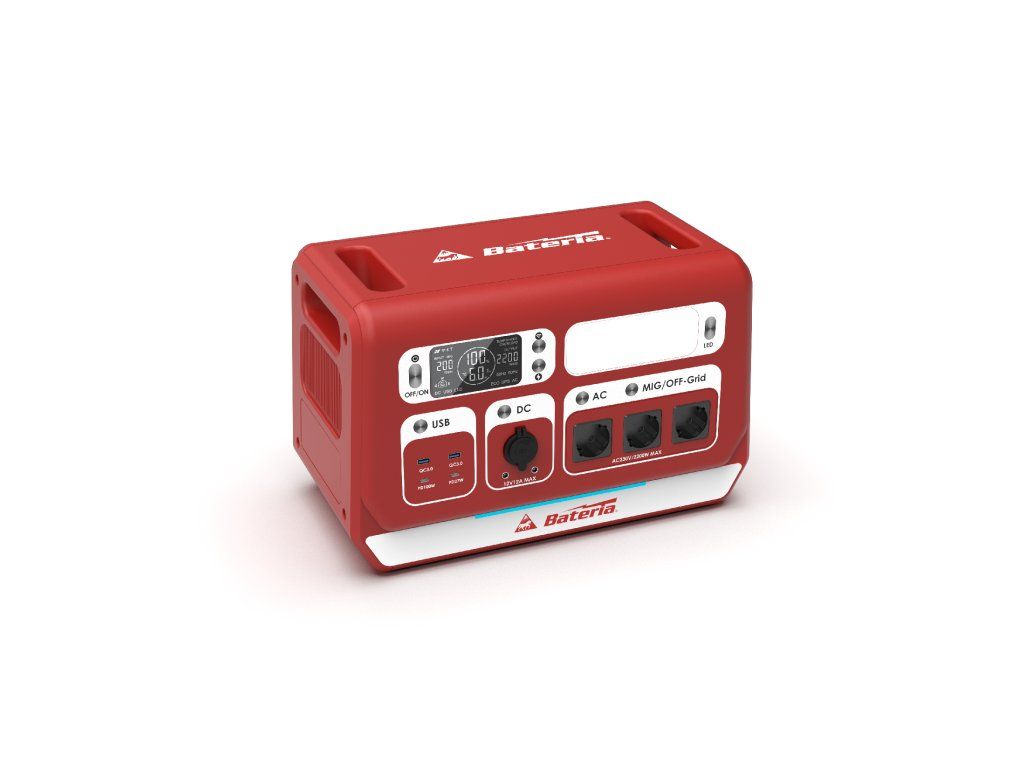

2200 W Charging Station with 455 Wp Solar Panel

Code: BAT-HESS-2MG-FVE-1 BAT-HESS-2MG-FVE-2 BAT-HESS-2MG-FVE-4 Choose variant

New

Brand: BATERIA

2200 W Charging Station with 455 Wp Solar Panel

€1 190,55 €1 268,99 €1 436,96 from €1 190,55 €983,93 excl. VAT €1 048,75 excl. VAT €1 187,57 excl. VAT from €983,93 excl. VAT

Skladem Skladem Skladem Choose variant

Variant

The 2200 W solar power station is a powerful battery energy storage solution for homes, cottages, and caravans. It allows you to generate, store, and use your own solar electricity without the need for a grid connection. When combined with solar panels with a total output of up to 1600 W, it provides a reliable energy source for everyday appliances as well as backup power during power outages. An ideal solution for off‑grid operation, travel, and reducing dependence on energy suppliers.

Detailed information

Product detailed description

2200 W Solar Power System with 2048 Wh Battery and 455 Wp Panels

The solar system with a 2200 W charging station is a reliable power source for households, workshops, caravans, and outdoor use. With a capacity of 2048 Wh and an output of up to 2200 W (4400 W surge), it easily powers most common appliances—from refrigerators and coffee machines to electric tools.

When combined with 455 Wp solar panels, it can generate its own energy from the sun and store it in the battery for later use. A maximum solar input of up to 1600 W ensures fast charging and sufficient energy throughout the day.

The LiFePO₄ battery offers a long service life (3000+ cycles), high safety, and stable performance even with frequent use. The station can be recharged from the grid, a car (12 V / 24 V), or solar panels—simultaneously if needed.

Thanks to the Wonderfree mobile app, you have full control over power consumption, output, and charging modes. The UPS function provides automatic backup power during outages, and the pure sine wave output allows safe operation even for sensitive electronics. It is an ideal solution as a backup power source, solar battery, or mobile power station for off‑grid operation.

This station offers more than standard power banks: it features AC, DC, USB outputs, and LED lighting. Additionally, it can be connected to the Wonderfree smart app, where you can schedule charging, monitor energy consumption and production, or update firmware.

With the Power Feed‑in function, surplus energy can be fed back into the home grid—according to a schedule, time of day, or battery level. Combined with smart MIG sockets, you gain a fully automated energy management ecosystem.

SOLAR POWER OUTPUT

The charging station supports connection of 1, 2, or 4 solar panels (up to 1600 W). Solar energy is stored directly in the battery and is immediately available for powering appliances. The package also includes PV connectors for connecting 2 or 4 panels.

What does this mean in practice?

Significantly faster charging compared to a standard wall outlet
Sufficient energy even in less favorable weather conditions
Ideal for all‑day off‑grid operation

How Fast Does the Portable Power Station Charge from the Sun?

Under ideal conditions:

1 panel (455 W) → fully charged in approx. 6–7 hours
2 panels (910 W) → fully charged in approx. 3–4 hours
4 panels (maximum input power) → fully charged in approx. 1.5–2 hours

Actual charging times may vary depending on sunlight intensity, panel orientation, and weather conditions.

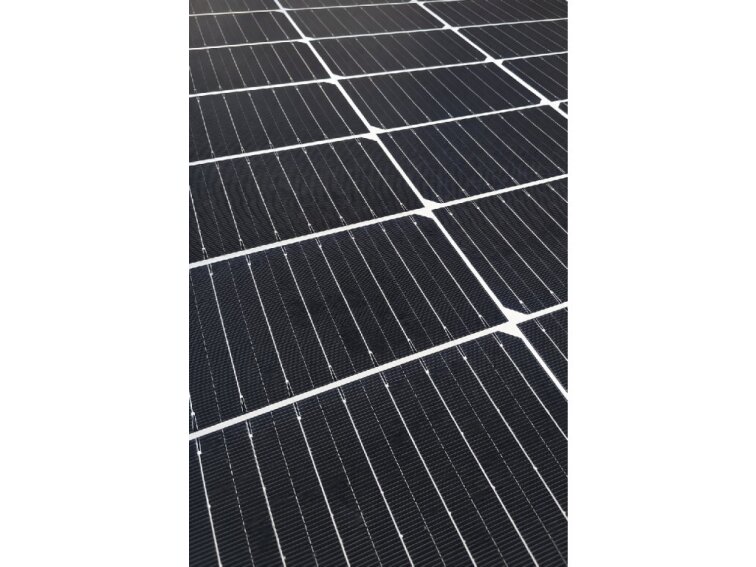

455 W Photovoltaic Solar Panel

The 455 Wp monocrystalline solar panel uses modern half‑cell technology, which divides the panel into two independent sections. Thanks to this design, partial shading does not cause a significant drop in performance—the panel can maintain up to 50% of its output instead of a complete power loss.

Technical Specifications:

Rated Power (Pmax): 455 W
Efficiency: 20.93%
Number of cells: 144 (6 × 24)
Dimensions: 2094 × 1038 × 30 mm
Weight: 23.5 kg

The panel is housed in a durable anodized aluminum frame, combining a modern design with high strength. It offers excellent resistance to wind and other external environmental influences.

Reliable Power for Home and Workshop

Handles a fridge, kettle, heavy-duty power tools, and even charging multiple e-bikes at once. Continuous output of 2200 W, with up to 4400 W peak.

Operation Even Without Grid Connection

Works in both grid-tied and off-grid modes. In off-grid mode, it can power appliances while simultaneously charging its battery – for example, from solar panels.

Efficient Charging from Grid and Solar Panels

Supports 1, 2, or 4 panels with a solar input of up to 1600 W. You can combine grid and solar charging for higher power and a full recharge in just 90 minutes.

Long-Lasting, Maintenance-Free Battery

The LiFePO₄ battery offers over 3500 cycles, even with regular 70% depth-of-discharge, ensuring reliable performance for 10 years or more without significant loss of capacity.

USB Outputs for Everyday Devices

Just turn it on, pair via Bluetooth or Wi-Fi, and you're ready to go. For outdoor use, a mobile hotspot from your phone is all you need.

Uninterrupted Backup Power

The UPS mode ensures an instant switch to battery power during a grid outage. It keeps computers, data storage, and other sensitive electronics running without interruption.

Control and Monitoring via App

The mobile app allows you to monitor capacity, input, and output, schedule charging, switch modes, and control outputs remotely via Wi-Fi or Bluetooth.

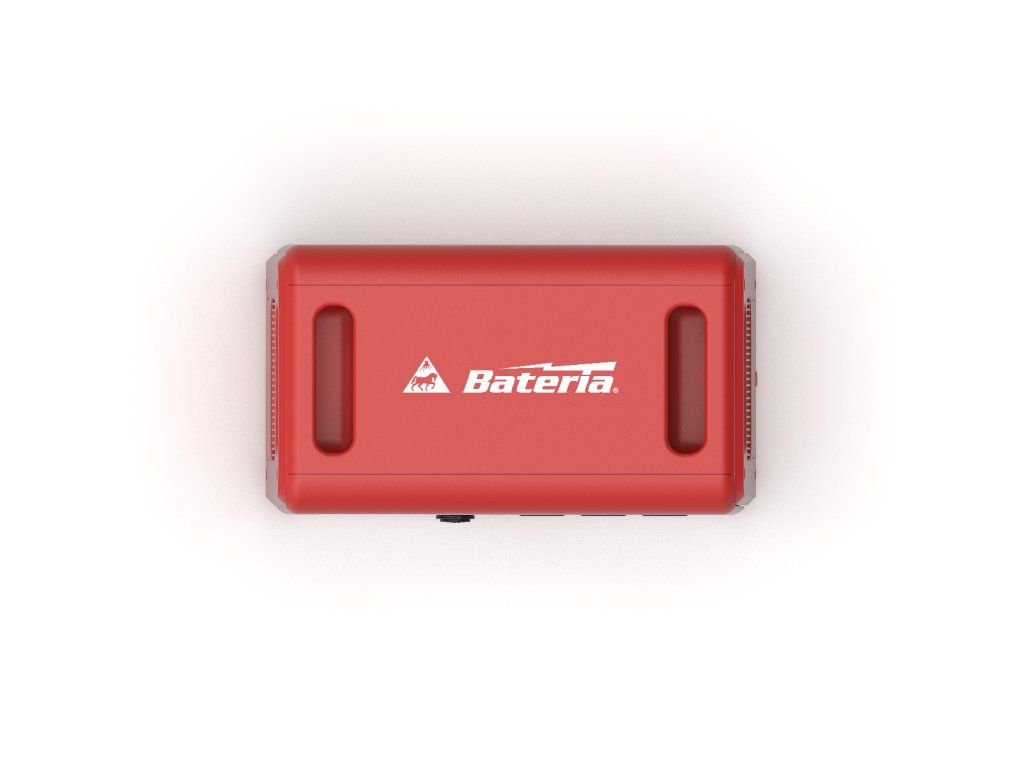

Robust Design and Safety Features

A durable body with a carrying handle and built-in protections against overvoltage, short circuits, overheating, and overload ensure safe and stable operation.

The power station ensures full energy self-sufficiency and acts as an automatic UPS backup during power outages. The system immediately takes over the supply of key devices — such as the heating circulation pump and the home water system — keeping the house fully functional even when disconnected from the grid.

Smart control detects the outage, switches to battery operation, and automatically restores normal power once the grid returns. This guarantees continuous comfort, heating, and water supply without any user intervention.

Additional parameters

Category:	solární sestavy
Battery Type:	LiFePO₄ (Lithium Iron Phosphate)
Battery Capacity:	2,048 Wh ± 5% (40 Ah / 51.2 V)
AC Charging Input:	174–264 V, max. 1,600 W
DC Car Input:	12–24 V / 10 A, max. 240 W
Solar Input (PV):	18–145 V DC / 25 A, max. 1,600 W
AC Output (Off-grid):	230 V / 50 Hz, 2,200 W continuous, 4,400 W peak
AC Output (On-grid):	230 V / 50 Hz, max. 800 W
AC Output Waveform:	Pure sine wave
USB Outputs 1 & 2 (USB-A):	QC 18 W (5 V / 2.4 A, 9 V / 2 A, 12 V / 1.5 A)
USB Type-C 1:	PD 100 W (5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 5 A)
USB Type-C 2:	PD 27 W (5 V / 3 A, 9 V / 3 A, 12 V / 2.25 A, 15 V / 1.8 A, 20 V / 1.35 A)
Car Socket Output:	13.8 V / 12 A max.
2× DC Outputs (5521):	13.8 V / 5 A max. (combined max. 12 A)
LED Light:	3 W max., 3 brightness levels (L/M/H), SOS function
Protection Features:	Short circuit, overcurrent, overvoltage, undervoltage, overload, overheating
Battery Lifespan:	≥ 3,500 cycles (DOD ≥ 70%)
Operating Temp. (Charging):	0–40 °C
Operating Temp. (Output):	−10 to +40 °C
Dimensions (L × W × H):	465 × 260 × 295 mm
Weight:	24.2 kg
Operating Modes:	On-grid, Off-grid, UPS, Hybrid Load, Auto SOC, Smart Feed-in, AC Timing
App Control:	Wonderfree mobile app (iOS / Android), via Bluetooth and Wi-Fi
