    Home / Products / Solar / MicroInverter 500W

    MicroInverter 500W

    Code: EVT-500-R
    EVT 500R Primary
    €122,64
    Skladem

    Each microinverter is individually connected to one Solar Panel. As a result, each panel is controlled by an individual Maximum Power Point Controller (MPPT). This ensures that the maximum available power from each panel is exported to the distribution grid, regardless of the power output of the other panels in the assembly.

    Detailed information

    Related products

    EVB GATE Primary
    Monitoring gate for EVT-500-R
    Skladem
    €102,13

    The EVB300 monitoring device serves as a communication interface for microinverters and allows efficient communication with any Envertech microinverter and their direct control....

    Code: EVT-EVB300
    MC4 End Cap 2
    End cap for EVB cable
    Skladem
    €2,42

    Original blanking end cap for Envertech EVT-500-R Microinverter cables.

    Code: BAT-EVB-CAP
    5M MC4 Primary
    Extension cable for MicroInvertor - 5m
    Skladem
    €16,37

    The cable is used to connect individual Microinverters to the electrical grid. It also facilitates the connection of an entire string of inverters.

    Code: BAT-EVB-5M
    Show all related products

    Product detailed description

    Microinverter maximizes the energy production of your photovoltaic (PV) system.

    Each microinverter is individually connected to one Solar Panel. As a result, each panel is controlled by an individual Maximum Power Point Controller (MPPT). This ensures that the maximum available power from each panel is exported to the distribution grid, regardless of the power output of the other panels in the assembly.

    The microinverter thus ensures optimal panel performance even when other panels are shaded, dirty or less illuminated due to rotation.

    The result is maximum power generation from each panel.

    Features

    • suitable for panels from 250W to 650W
    • output power 500W
    • Wi-Fi
    • IP67 protection(dustproof, high water pressure and 1 meter deep submersion)
    • Up to 10 units in one branch in a row
    • Cloud monitoring
    • iOS and Android monitoring app

    Expansion of an existing solar power plant

    The microinverter can be easily used to expand your existing solar power plant, regardless of the installed technology, thanks to its direct connection to the power grid.

    Simply install the Microinverter to the panel and plug into the electrical grid.

    If your existing power plant already contains AC Coupling equipment (typically Victron, SOLAX, GoodWe and many others) the original and new solar installation can be combined.

    Mikrostřídač 500W

    Easy connection of remote panels

    You can use a microinverter to connect remote solar panels, whether they're placed in different parts of your garden or on various roofs. Each section can simply be connected directly to the electrical grid. Unlike central, larger inverters, microinverters eliminate the need for extensive cabling, making installation easier and more flexible.

    Progressive expansion of installed power

    The microinverters are directly adapted for string connection (multiple inverters in a row). So you can very easily start with one panel and inverter and gradually expand the installation by wiring inverters with panels in a row. This eliminates the need to invest in a more expensive large inverter whose power you won't even use. Buy exactly as many as you need.

    You can wire up to 10 units in this way.

    Connecting directly to the mains

    The microinverter is connected directly to the mains, it can be connected to one phase or three phase.

    To connect, we recommend using 5 meter cable with connector.

    Mikrostřídač 500W Example of network connection (1 phase, 3 phase connection also supported)
    Mikrostřídač 500W

    You know..

    That its easier to manage overflow to grid with granual installation of solar panels as you consumption grows. Microinverter is easiest and cheapest to scale solution on market.

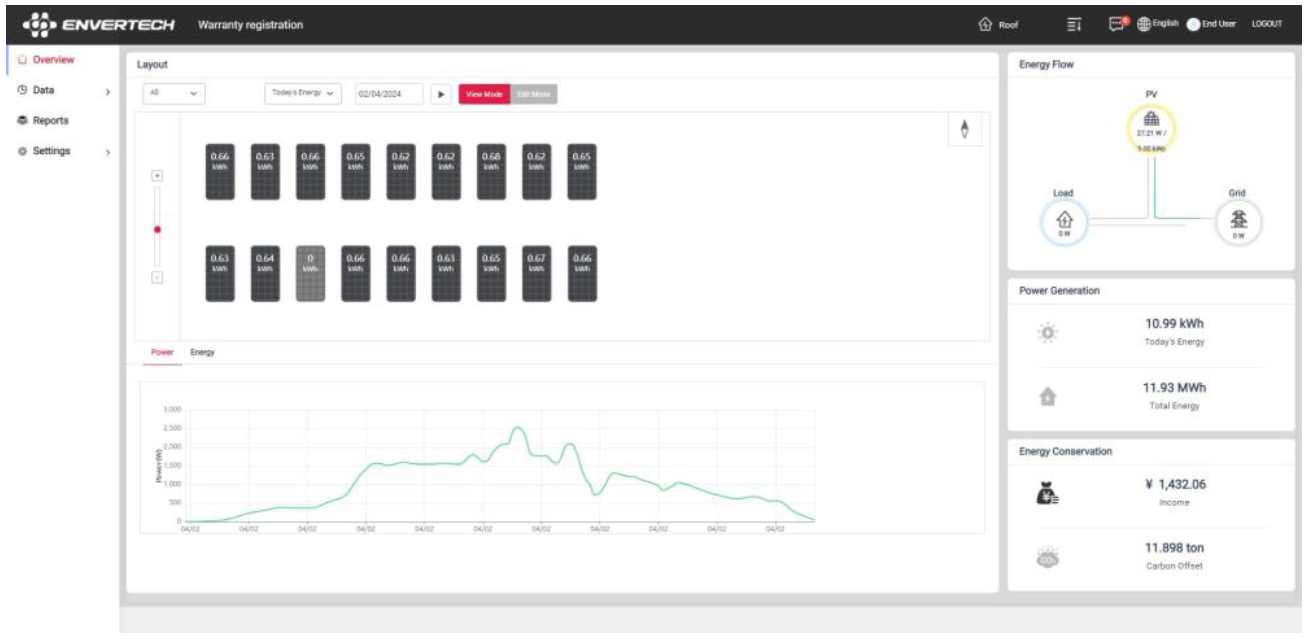

    CLOUD monitoring

    The manufacturer directly operates a cloud-based remote monitoring tool.

    http://www.envertecportal.com/

    Mikrostřídač 500W

    Mobile apps for monitoring and setup.

    In addition to the web-based cloud tool, the inverter can also be monitored and controlled using mobile apps on your phone or tablet.

    Mikrostřídač 500W

    App Store

    Apple iOS
    Mikrostřídač 500W

    Google Play

    Android

    Additional parameters

    Category: Solar
    Weight: 2.1 kg
    Width: 163.3 mm
    Height: 163.7 mm
    Depth: 35.5 mm
    Max power: 500 W
    Max input current: 18 A
    Max DC input: 60 V
    Wi-Fi: 802.11 b/g/n
    Operational temperature: -40 to 65 °C
    Standy By consumption: 100 mW
    IP rating: IP67
    Frequency: 50-60 Hz
    Efficiency: 96.5 %
